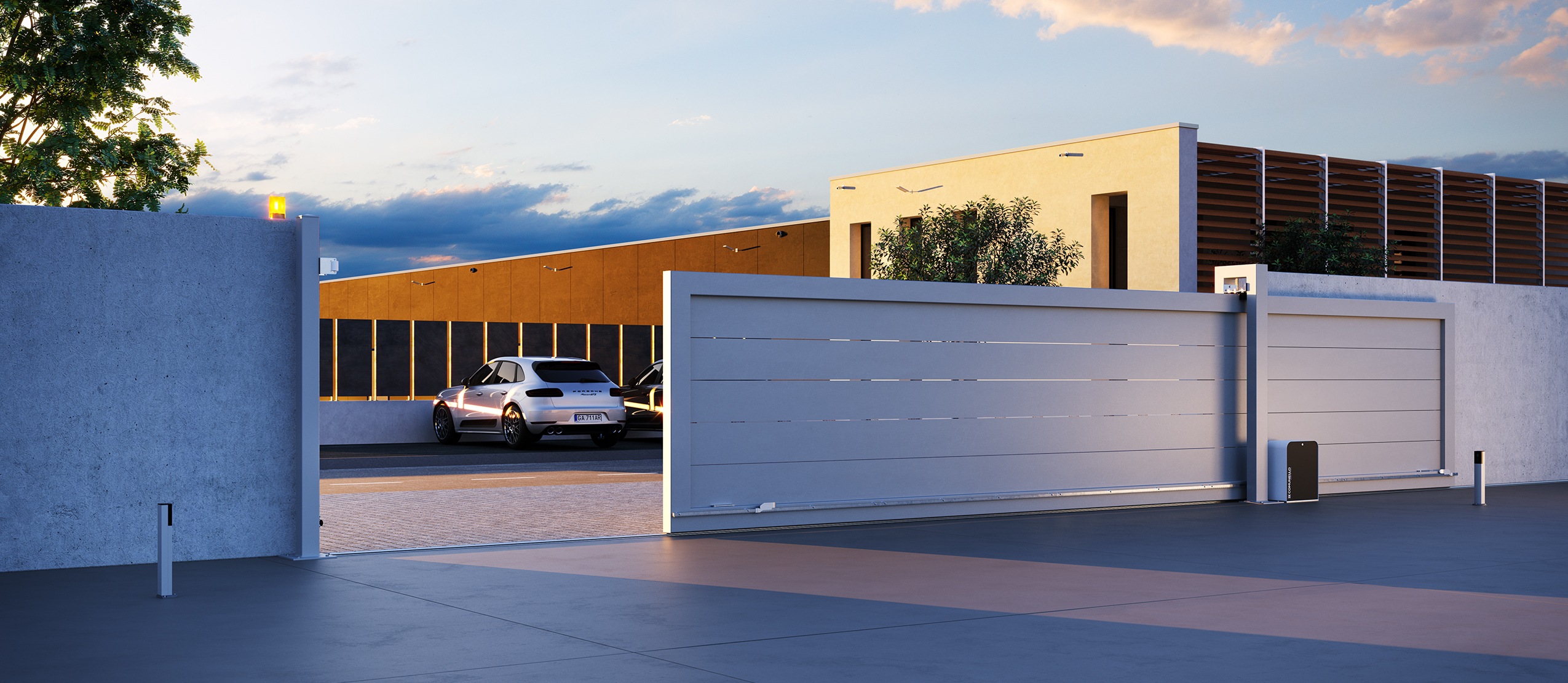

Schiebetor FORT 3500 Icons FORT 3500

FORT 3500
In Wohn- und Industriebereichen bieten die Stellantriebe der Serie Fort eine ästhetische und intelligente Lösung.

Dank der Technologie der an Bord montierten Zentrale können zahlreiche Funktionen benutzt werden, sowie z.B. die Hinderniserkennung und die Programmierung der Arbeitszeiten.

Der Empfänger ist in der Zentrale bereits einmontiert. Die Motorstützlager sorgen für eine stille Bewegung auch bei Volllast.
0:27
/
0:34
Loaded: 0%
0:27
Progress: 0%
Stream TypeLIVE
-0:07

1x

en meccanica plus fort 2500 01 en meccanica plus fort 2500 02
  • gamma
Elettronica di comando Basic
  • Speed: thanks to the integrated inverter it is possible to adjust the nominal and slow-down speeds while maintaining high levels of force and smooth movement.
  • Acceleration: The control unit allows to manage and adjust the acceleration and deceleration ramps
  • Security: The control unit is able to manage, through dedicated inputs, N.C. or 8K2 sensitive edges and photocells.
  • Diagnostics: The control unit is able to perform real-time diagnostics using dedicated LEDs and display anomalies.
  • Commands: The control unit manages the commands: “only opening”, “only closing”, “step-by-step” and “Pedestrian”.
  • Sensitivity: The control unit allows to adjust the sensitivity for obstacle detection.
Elettronica di comando HP
  • Sensitivity: The control unit allows to adjust the sensitivity for obstacle detection.
  • Commands: The control unit manages the commands: “only opening”, “only closing”, “step-by-step” and “Pedestrian”.
  • Diagnostics: The control unit is able to perform real-time diagnostics using dedicated LEDs.
  • Security: The control unit is able to manage, through dedicated inputs, NC/8K2 sensitive edges and photocells.
  • Simple: The main functions can be easily activated using 10 dip-switches.
