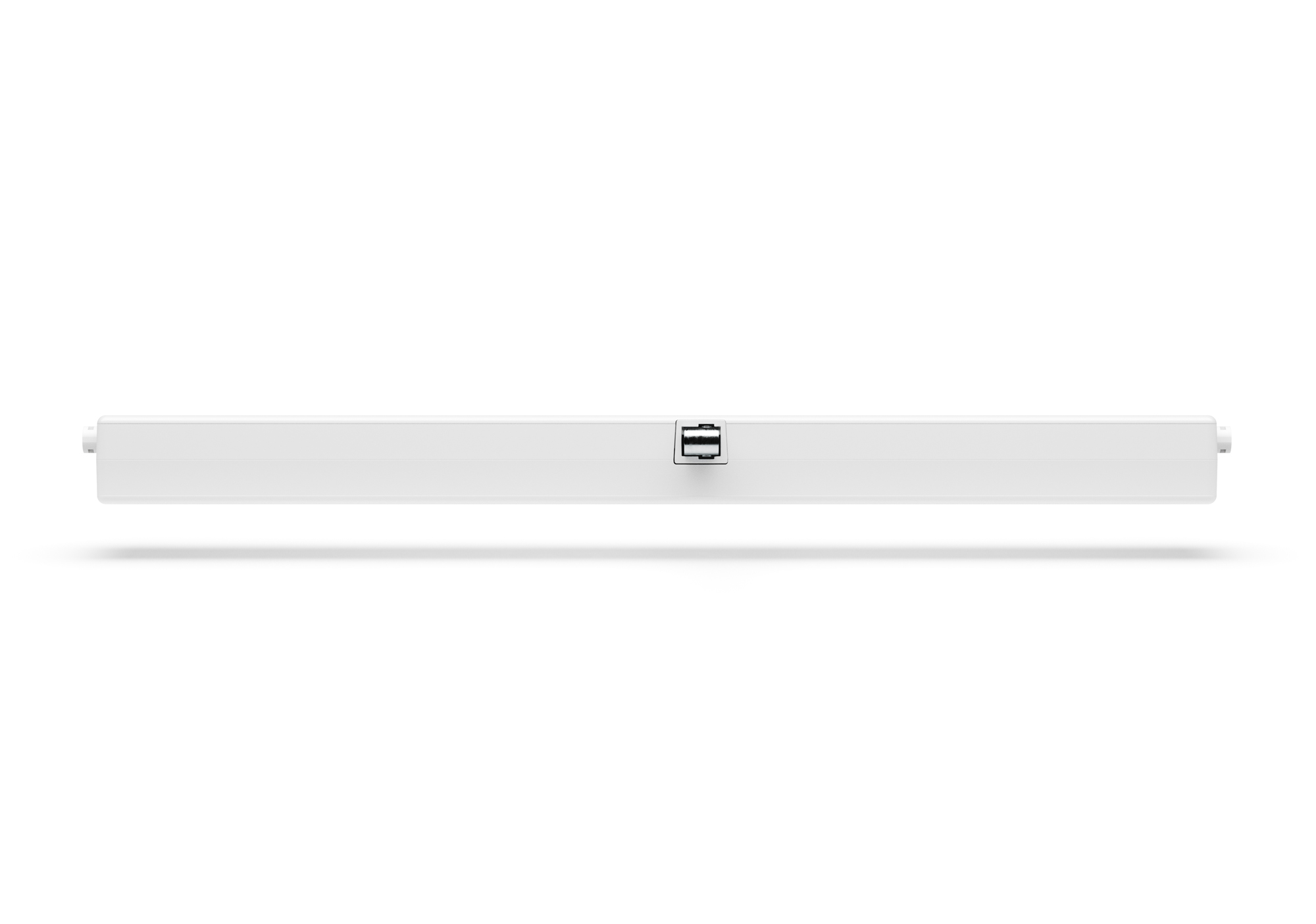

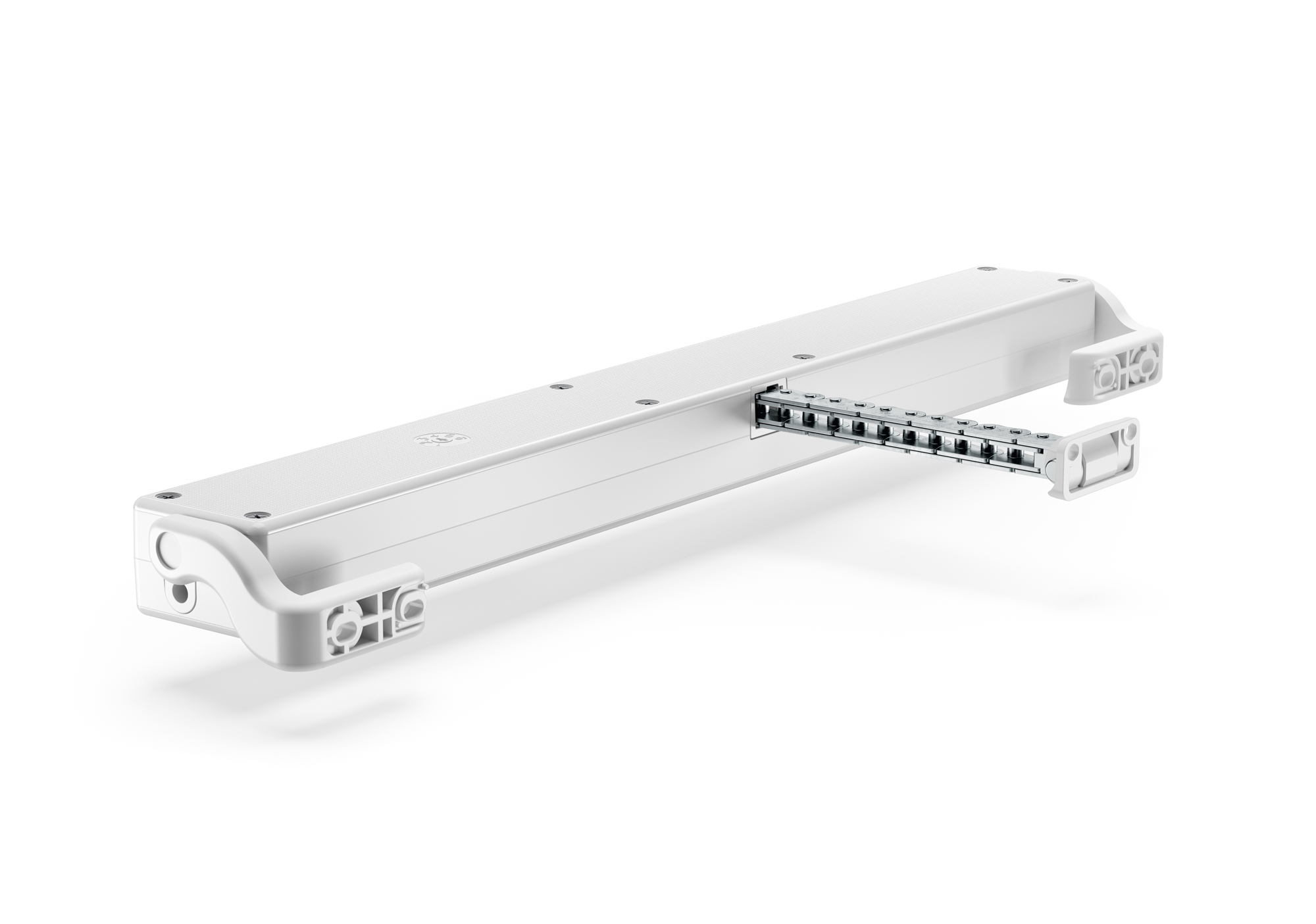

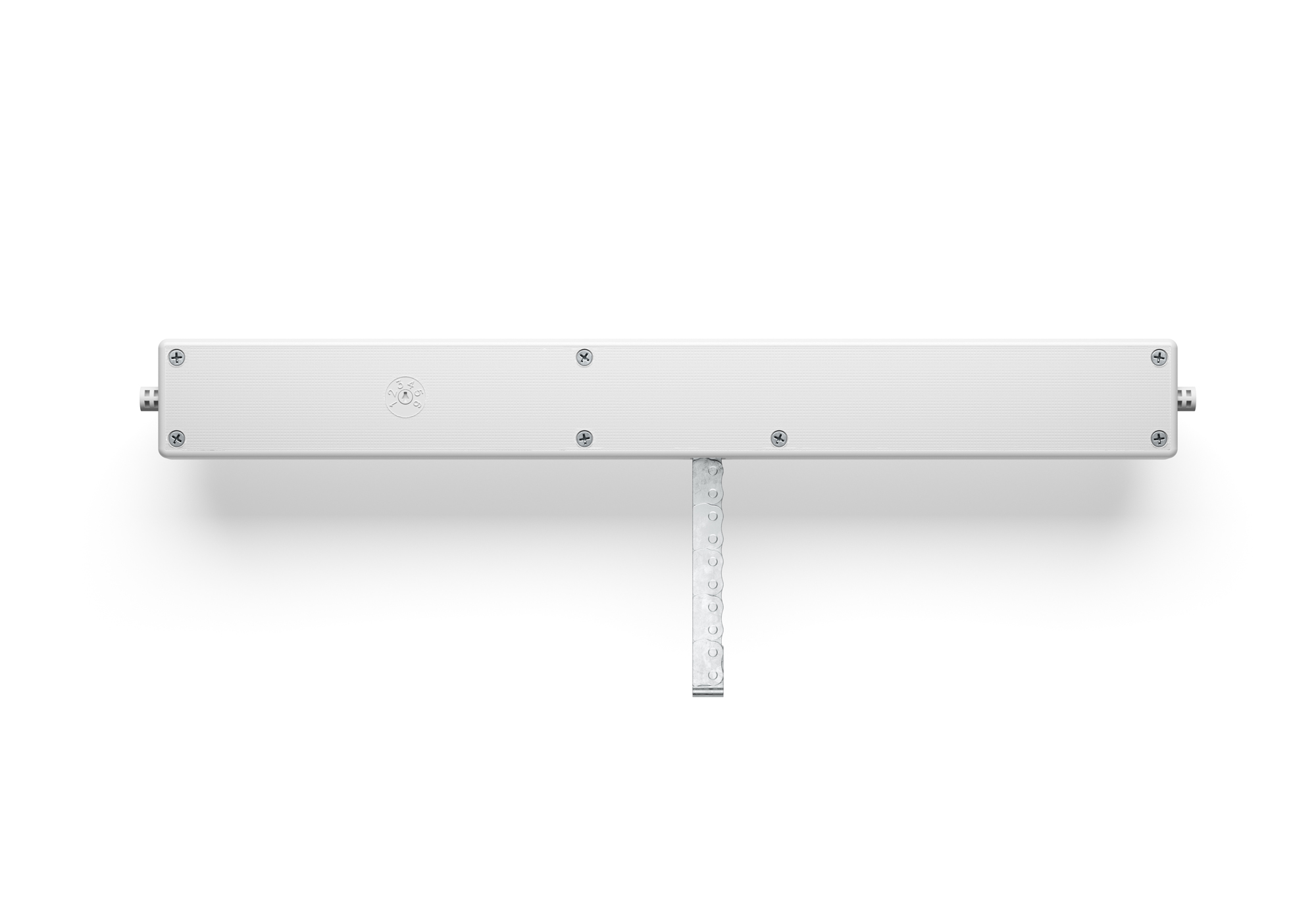

Inward opening STAR 25 Chain actuator Icons STAR 25 learn more

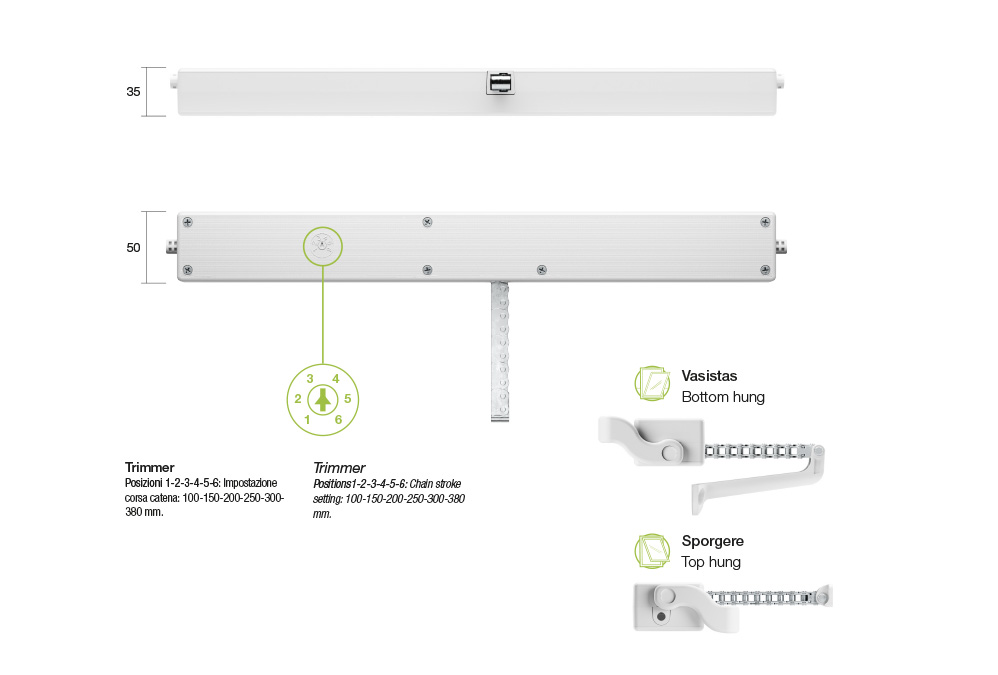

  • Adjustment
    6 chain stroke lengths easily adjustable by trimmer even when the actuator is not powered.
  • Reliable

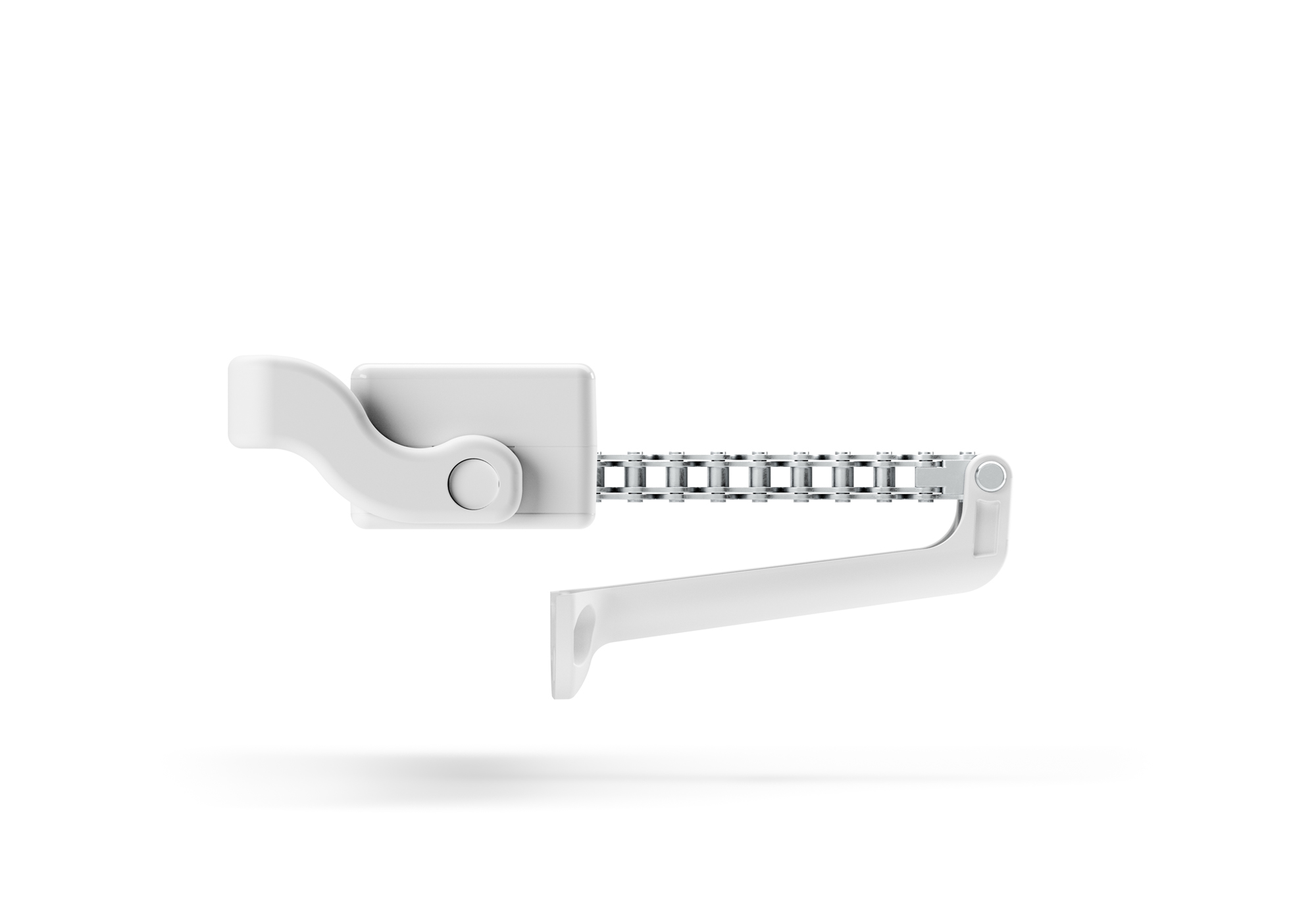

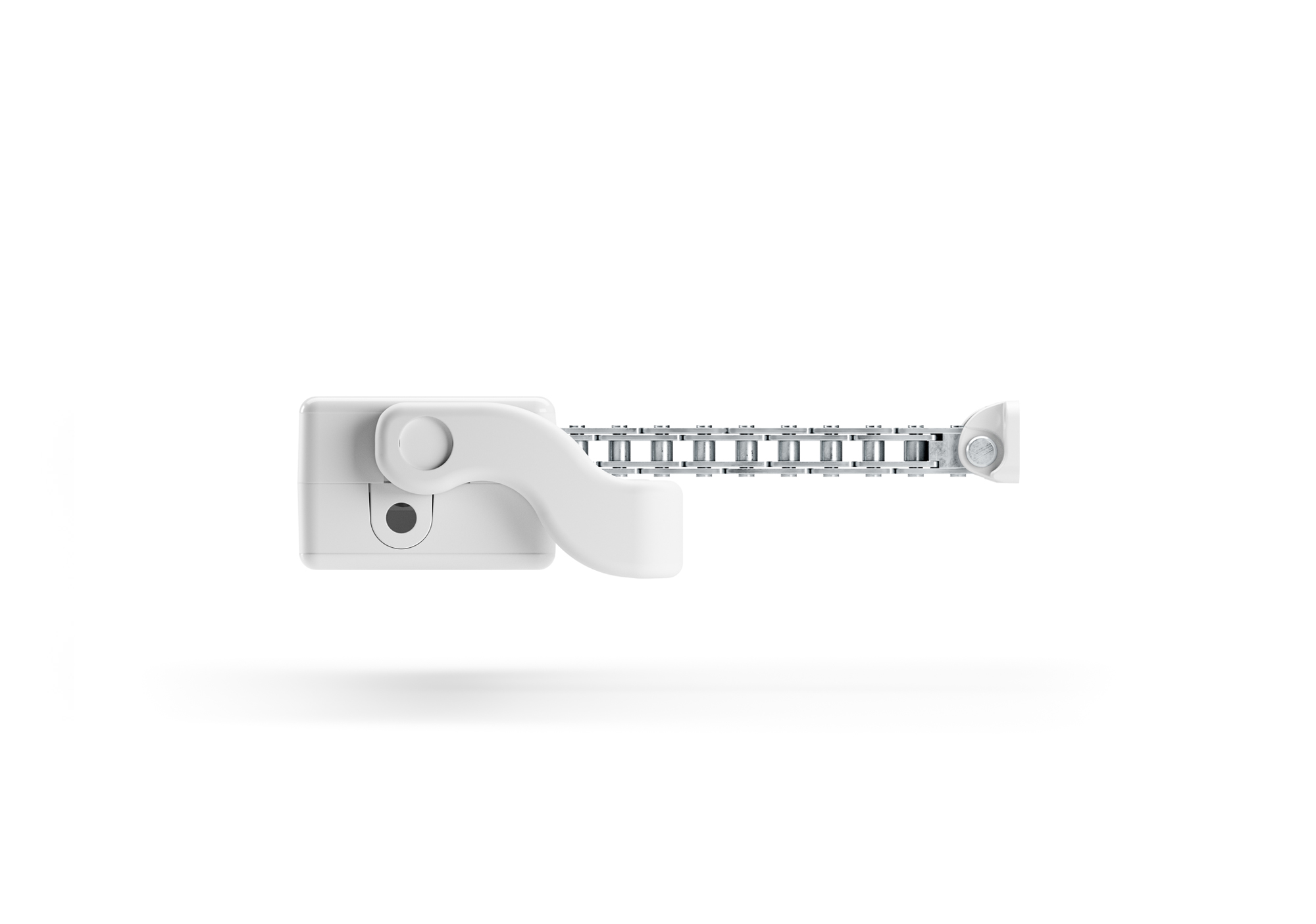

    The support brackets allow the actuator to swing to accompany the movement of the window.
  • Resistence
    The sturdy double-link chain with increased thickness guarantees greater resistance in push and pull. Limit Switch Acquisition of the automatic closing limit switch by current absorption. In this way, a safe and constant closure over time is guaranteed.

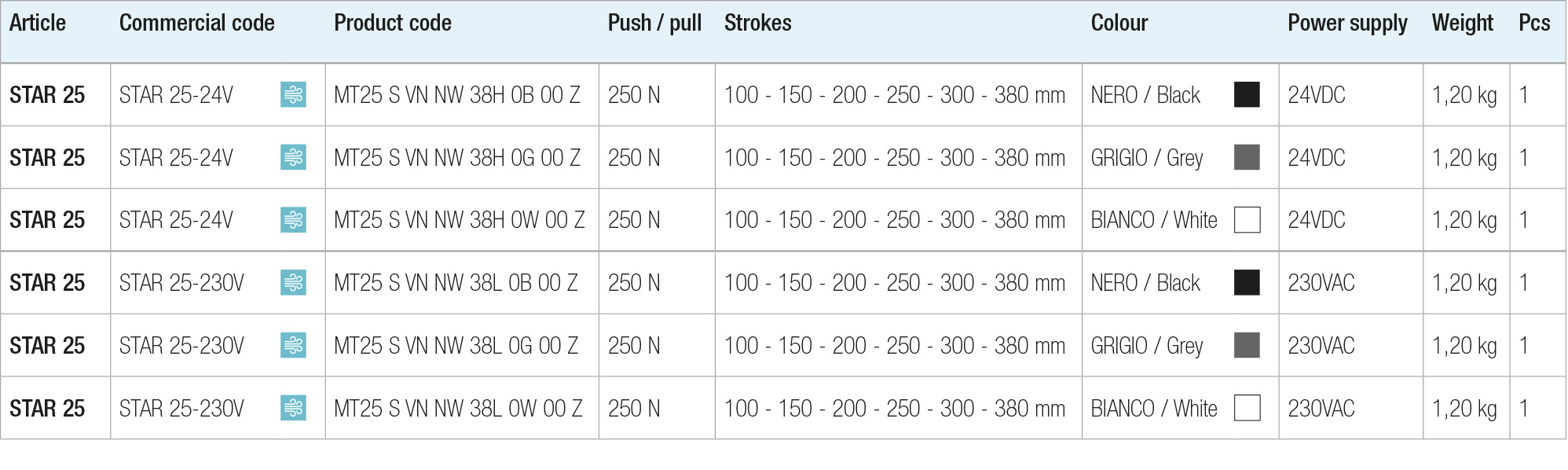

Range

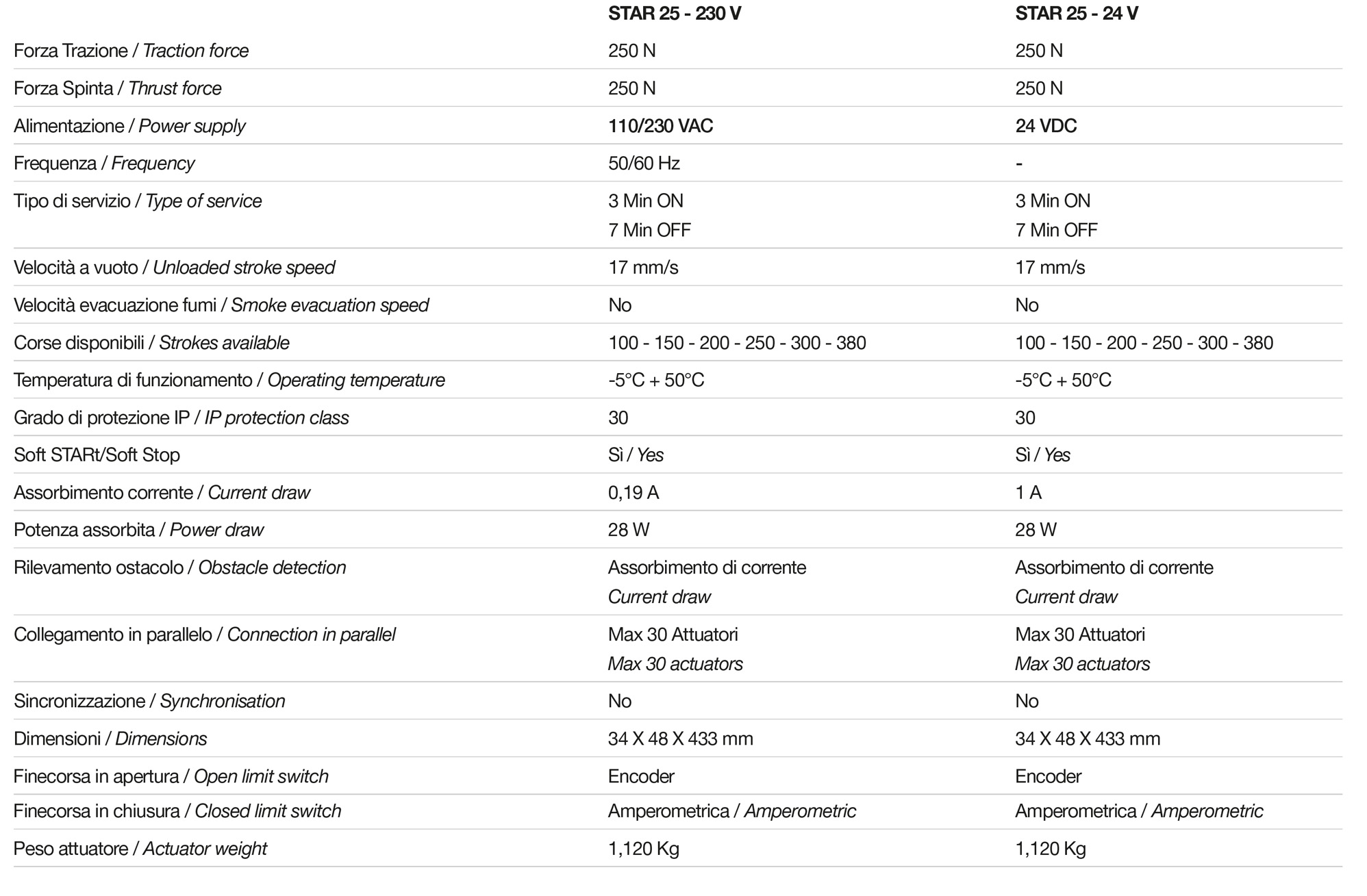

Table of technical data

Tech Data

* Access the user area to download images, CAD drawings and BIM models.
