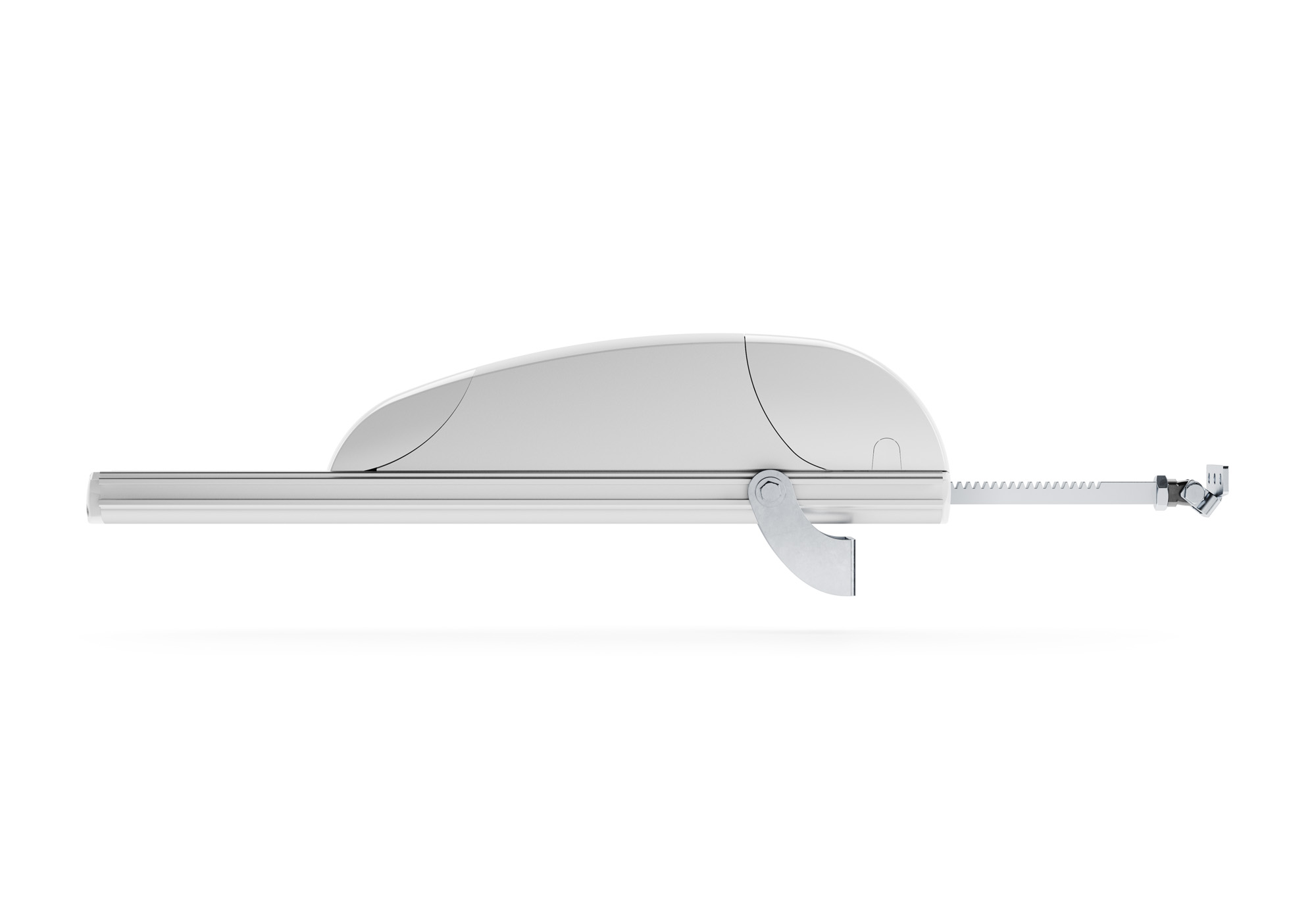

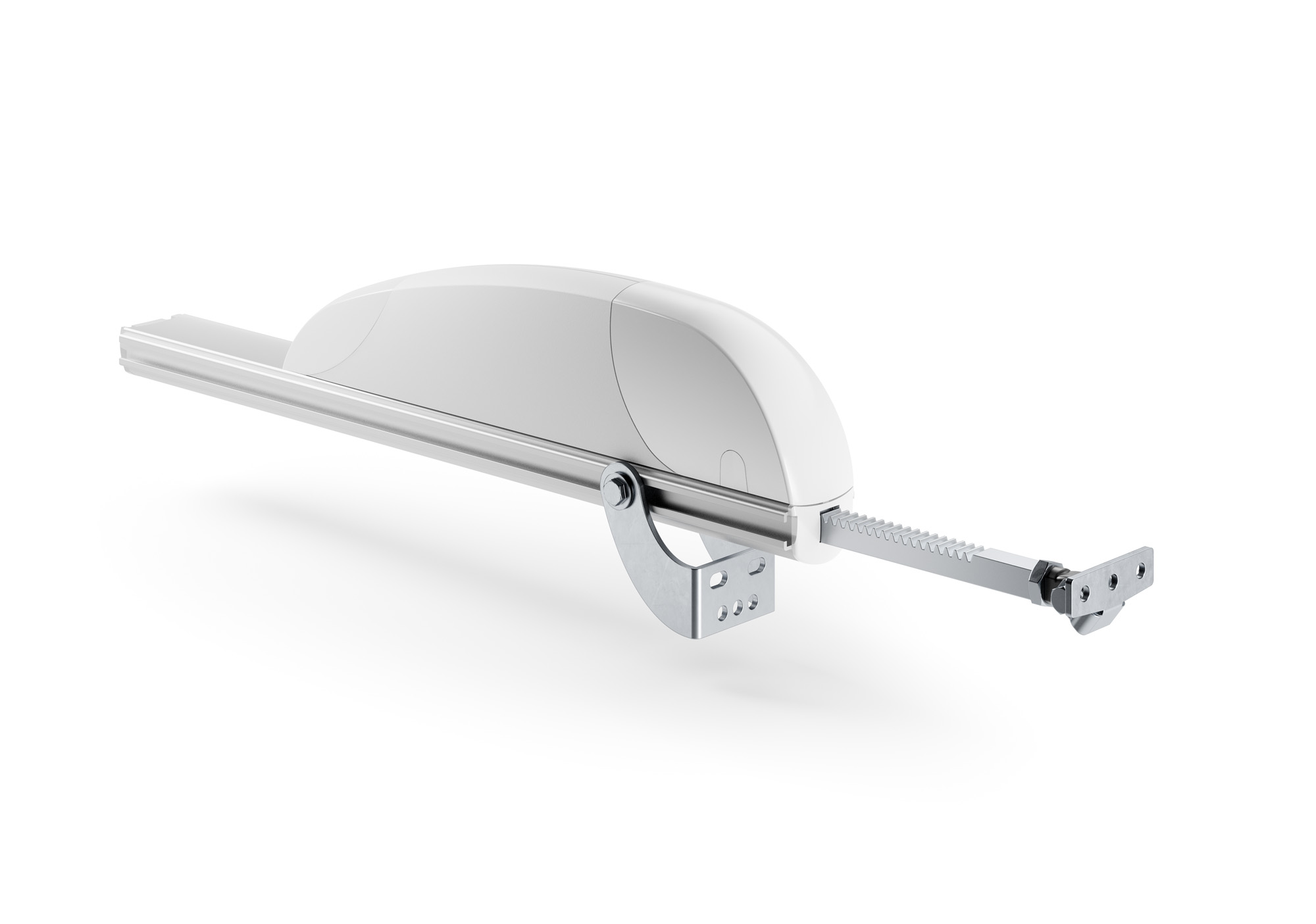

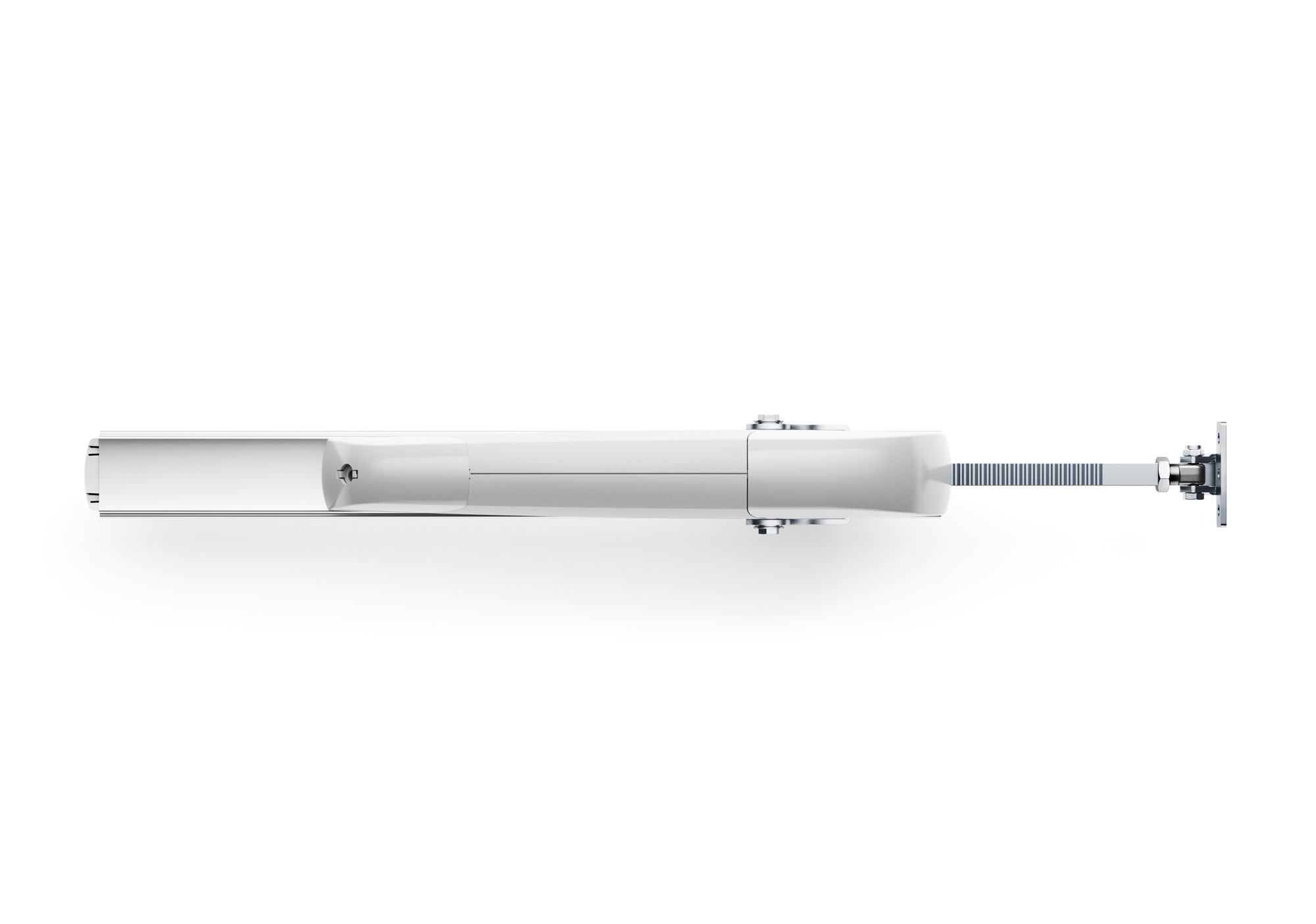

AIRWIN A45 Rack actuator
learn more
-

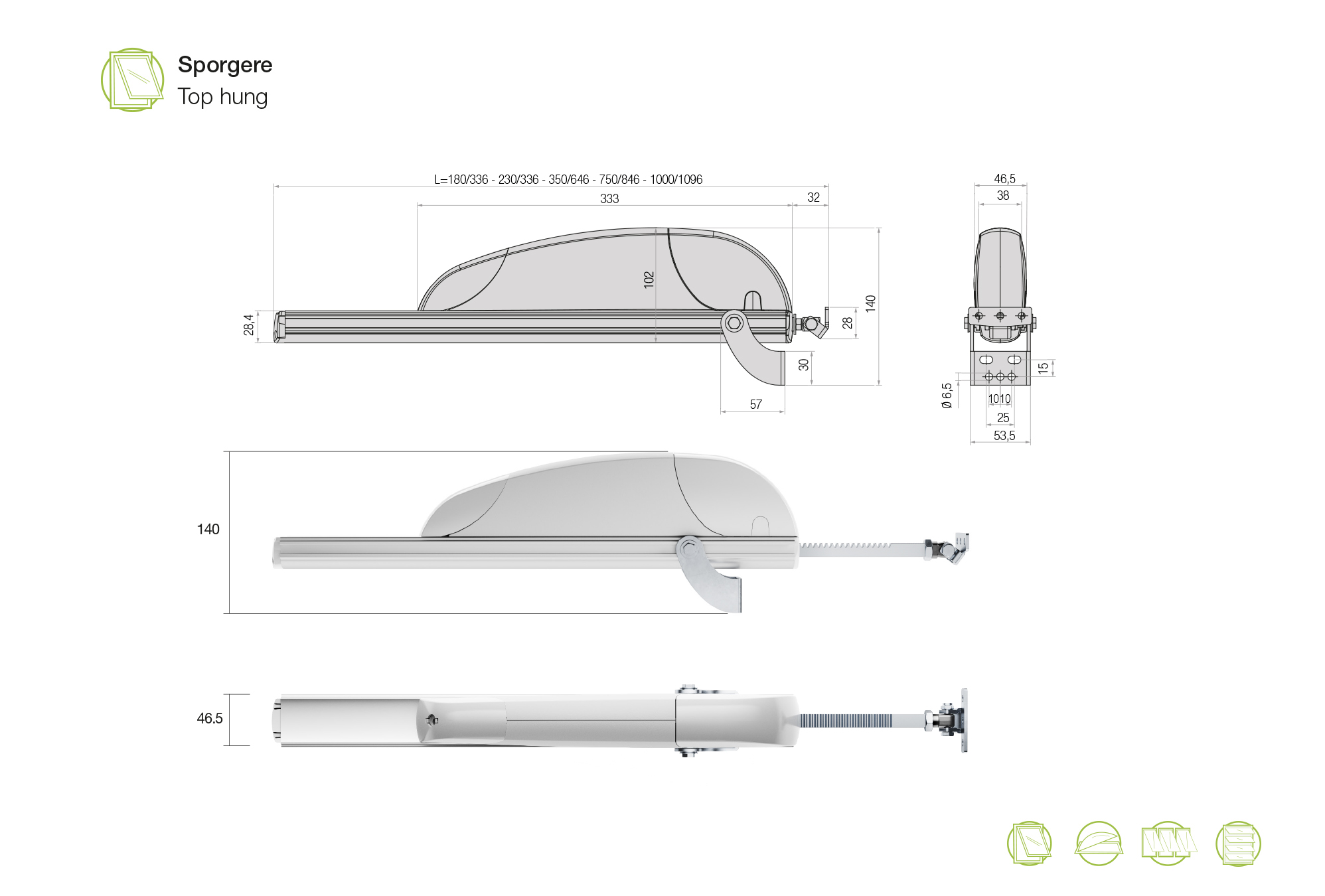

InstallationFixing of the adjustable bracket along the rail of the actuator body.
-
Opening limit switchThe adjustable opening limit switch is guaranteed in a stable and precise manner by the encoder.
-
Closing limit switchThe closing limit switch by current absorption guarantees stable closure over time.
-
A-MechIt is possible to mechanically connect 1 or 2 AIRWIN A MECH racks to the actuator to obtain a 2 or 3-point thrust system and ensure more uniform closure along the entire length of the window.
