Home › Typologies › Outward opening › LIWIN L40 SLIM - 1000

LIWIN L40 SLIM - 1000 Chain actuator learn more

QRCode Sync

Synchronization of multiple actuators, Parameter adjustment, Recording and Diagnostics in real time by simply scanning the QRCode.
Resistence

The extruded aluminum casing guarantee high resistance even in particularly difficult environments;
Technology

The new Wi-Fi technology, in addition to giving the possibility of making very precise adjustments using the Mowin App, allows synchronization of up to 8 LIWIN L40 Slim for the possible installation of several actuators in a single window or on systems where an elevated force is required.
Diagnostics

The Mowin App allows both the recording of the last manoeuvers with any reported anomalies and real-time diagnostics to identify any malfunction errors. The actuator is also equipped with a led able to signal if there are any anomalies.

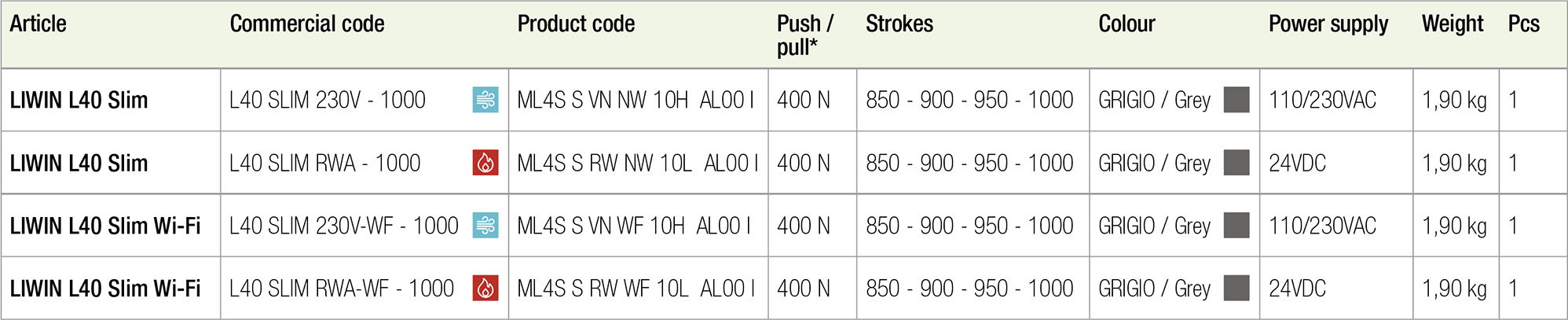

Range

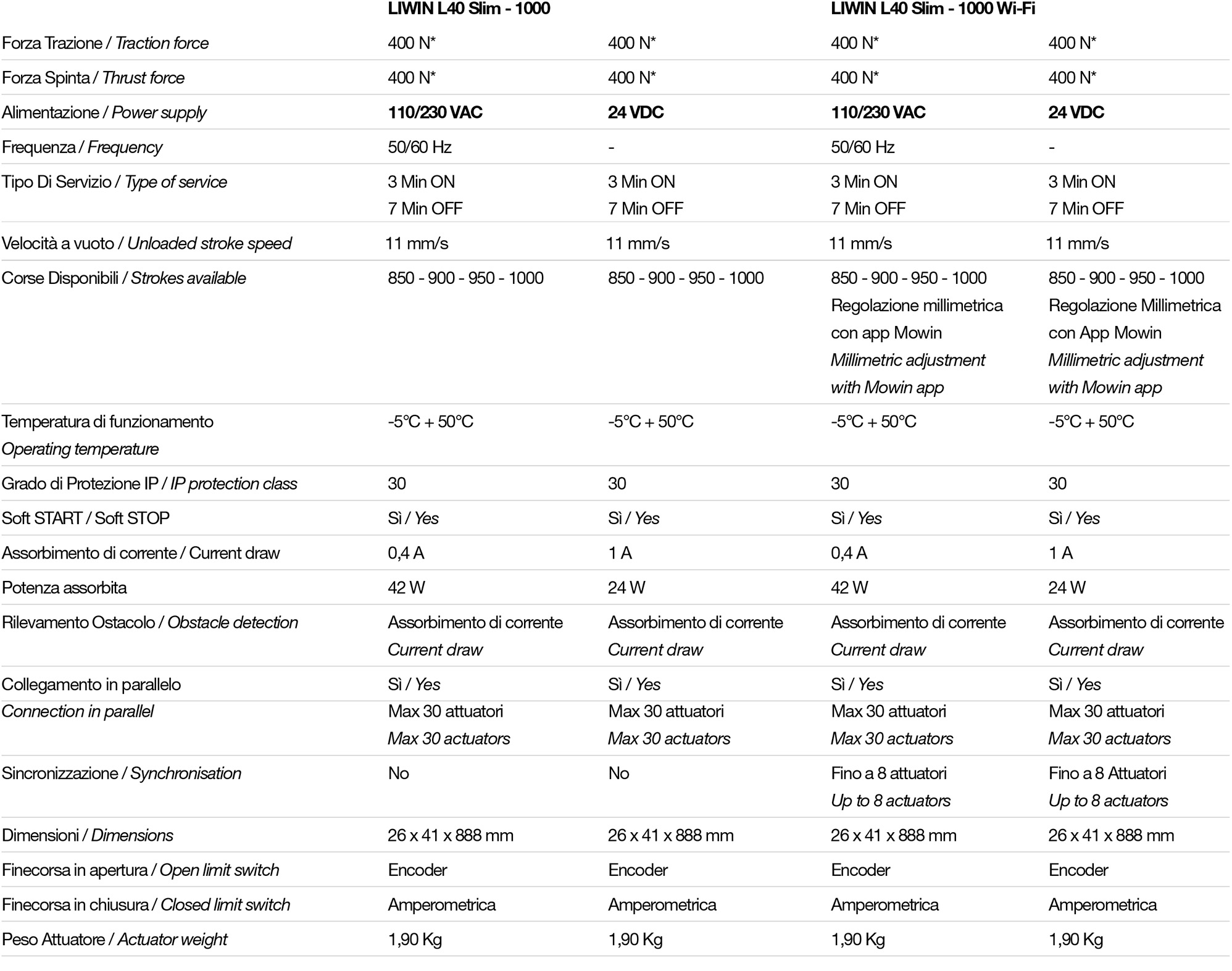

Table of technical data

Tech Data

* Access the user area to download images, CAD drawings and BIM models.

Product Data Sheet

Instructions Manual
