Home › Typologies › Solar shading blades › RAYWIN R20

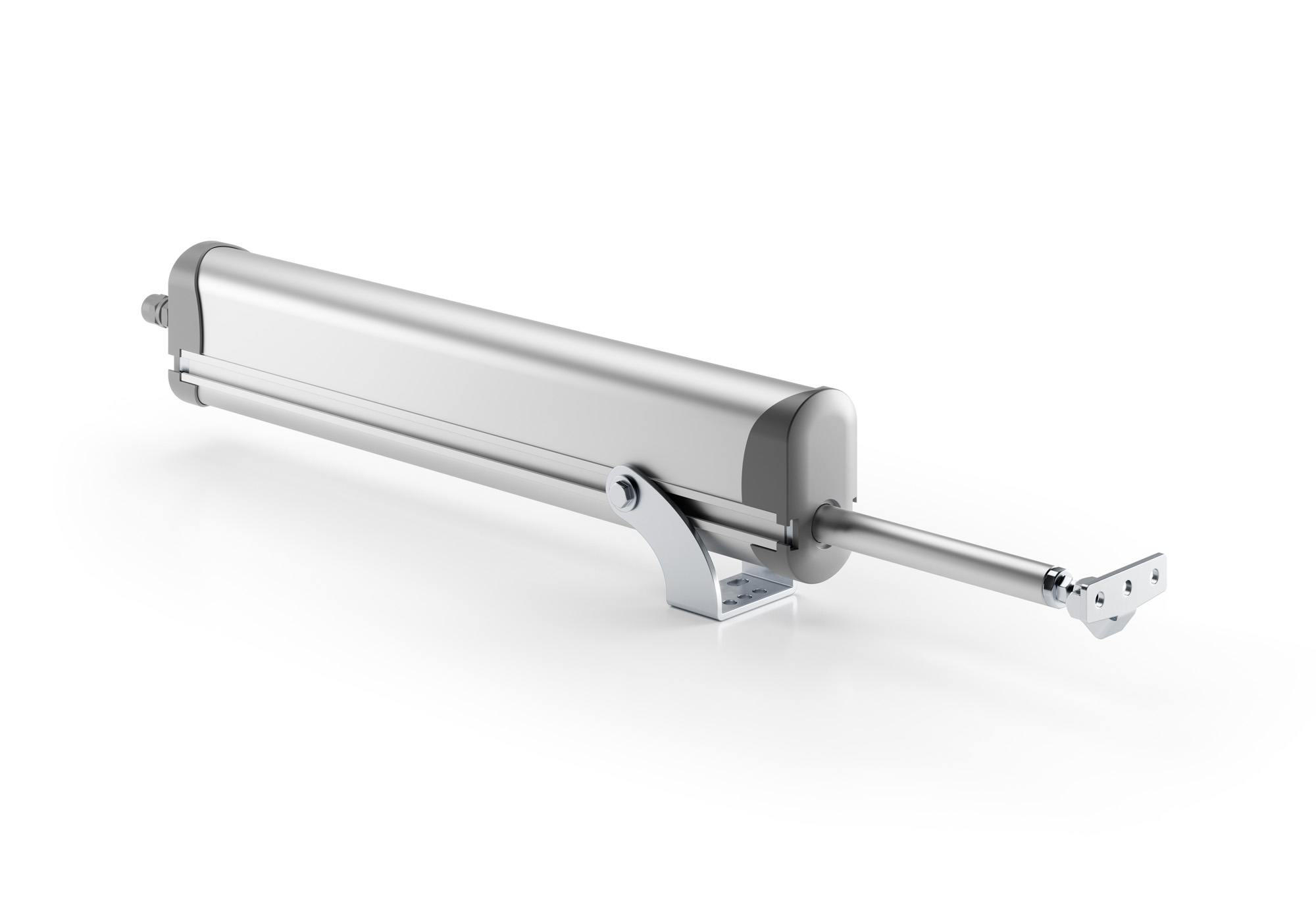

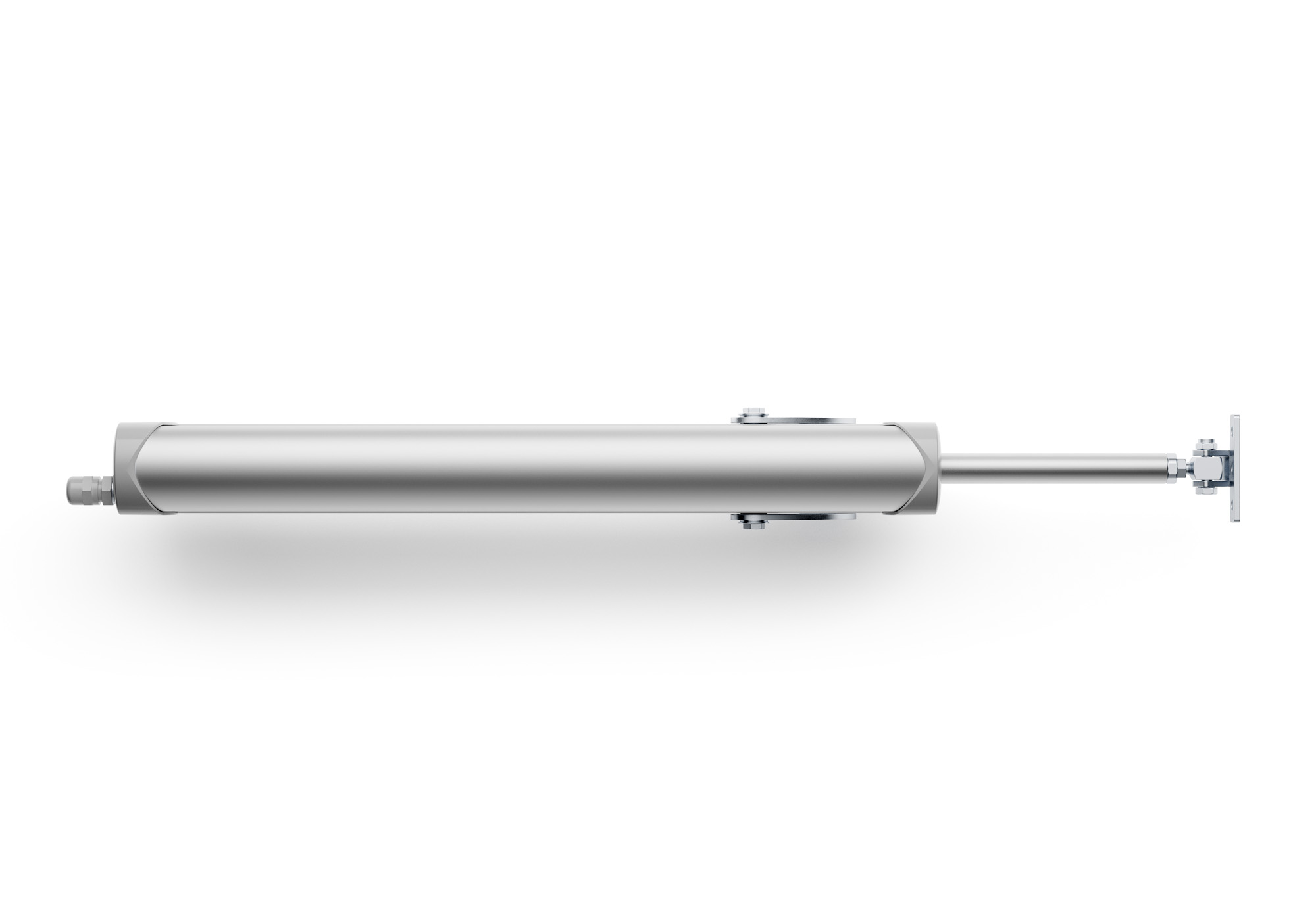

RAYWIN R20 Spindle actuator learn more

Installation

Fixing of the adjustable bracket along the rail of the actuator body.
Resistence

The aluminum casing and steel brackets guarantee high resistance.
Strokes available

The adjustable opening limit switch is guaranteed in a stable and precise manner by the encoder.
Closing limit switch

The closing limit switch by current absorption guarantees stable closure over time.

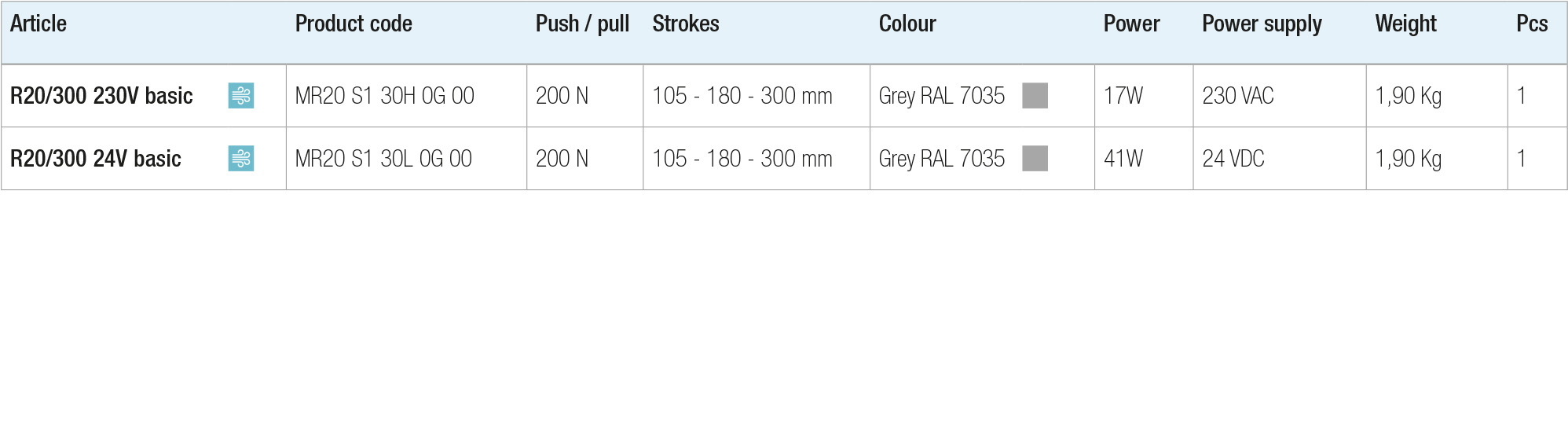

Range

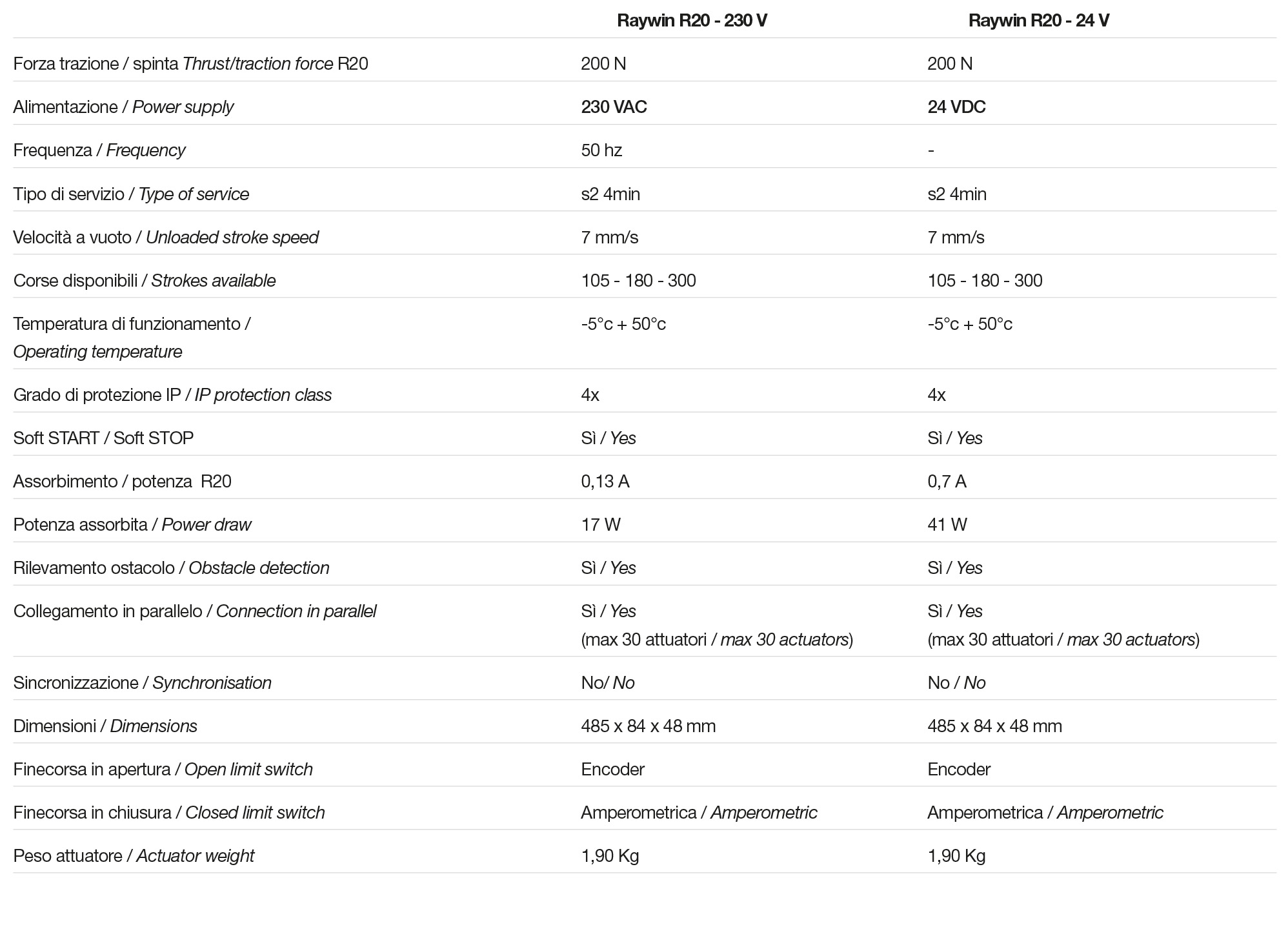

Table of technical data

Tech Data

* Access the user area to download images, CAD drawings and BIM models.

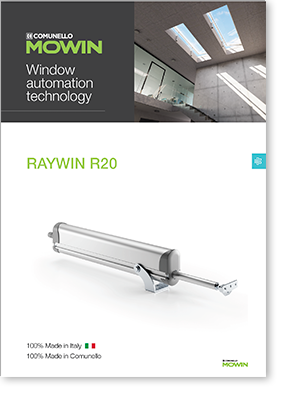

Product Data Sheet

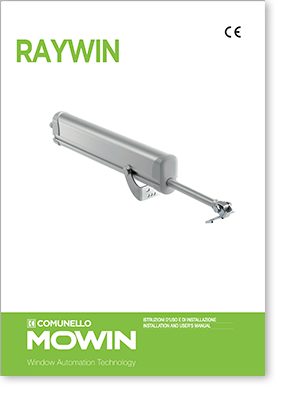

Instructions Manual
